| Menşe yeri: | Almanya |
| Marka adı: | Rexroth |

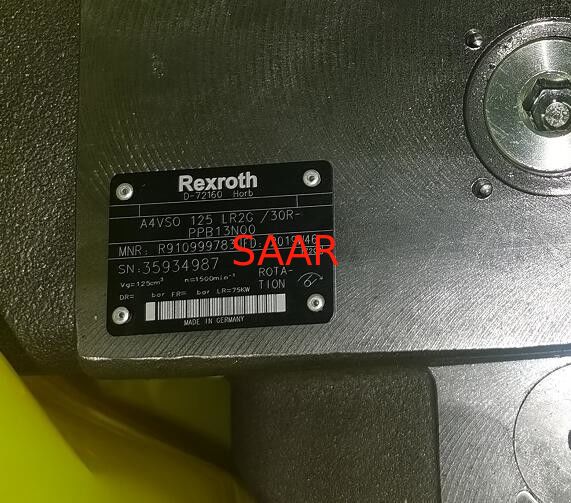

| Model numarası: | R910999783 AA4VSO125LR2G / 30R-PPB13N00 |
| Min sipariş miktarı: | 1 |
|---|---|
| Fiyat: | On Request |
| Ambalaj bilgileri: | Standart ahşap kutu |
| Teslim süresi: | 7-10days |
| Ödeme koşulları: | T / T, Western Union |
| Yetenek temini: | 1000 / ay |
| mnr: | R910999783 | model: | AA4VSO125LR2G / 30R-PPB13N00 |
|---|---|---|---|
| Vurgulamak: | R910999783,AA4VSO125LR2G,Değişken Rexroth Hidrolik Pompa |
||
Rexroth A4VSO Serisi Eksenel Pistonlu Değişken Pompa
Hidrolik eksenel pistonlu pompa A4VSO71, A4VSO125, A4VSO180, A4VSO250
Endüstriyel uygulamalar için sağlam yüksek basınç pompası
Boyut 40… 1000
Nominal basınç 350 bar
Maksimum basınç 400 bar
Açık devre
Metrik versiyon
Özellikleri
Çok uzun servis ömürlü sağlam pompa
Düşük çalışma gürültüsü
Kısa kontrol yanıt süreleri
Mükemmel emiş özellikleri
Aynı nominal boyuta kadar başka pompaların montajı için sürücü aracılığıyla
Swashplate tasarımı
Teknik veri
Değer tablosu (teorik değerler, verimlilik ve toleranslar olmadan; yuvarlanmış değerler)
| Nominal boyut | A4VSO71 | A4VSO125 | A4VSO180 | A4VSO250 | |||
| Nominal basınç | p N | bar | 350 | 350 | 350 | 350 | |
| Maksimum basınç | pmax | bar | 450 | 450 | 450 | 450 | |
| Yer değiştirme | Vg max | cm³ | 71 | 125 | 180 | 250 | |
| Hız | Maks. Alan sayısıhız | n max | rpm | 2200 | 1800 | 1800 | 1500 |
| Akış | -de n max | q V max | l / dak | 156 | 225 | 324 | 375 |
| Güç | Δ p = 350 bar | P max | kW | 91 | 131 | 189 | 219 |
| Dönme momenti | Δ p = 350 bar | Tmax | Nm | 395 | 696 | 1002 | 1391 |
| Yaklaşık ağırlık.) | m | kilogram | 53 | 88 | 102 | 184 | |
| Nominal boyut | A4VSO355 | A4VSO500 | A4VSO750 | A4VSO1000 | |||
| Nominal basınç | p N | bar | 350 | 350 | 350 | 350 | |
| Maksimum basınç | pmax | bar | 450 | 450 | 450 | 450 | |
| Yer değiştirme | Vg max | cm³ | 355 | 500 | 750 | 1000 | |
| Hız | Maks. Alan sayısıhız | n max | rpm | 1500 | 1320 | 1000 | |
| Akış | -de n max | q V max | l / dak | 533 | 660 | 1000 | |
| Güç | Δ p = 350 bar | P max | kW | 311 | 385 | 525 | 583 |
| Dönme momenti | Δ p = 350 bar | Tmax | Nm | 1976 | 2783 | 4174 | 5565 |
| Yaklaşık ağırlık.) | m | kilogram | 207 | 320 | 460 | 605 | |
| R910918131 | AA4VSO125LR2G / 10R-PPB13K25 |
| R910931386 | AA4VSO125LR2G / 10R-PPB13K31 |
| R910907888 | AA4VSO125LR2G / 10R-PPB13K34 |
| R910932216 | AA4VSO125LR2G / 10R-PPB13K55 |
| R910936942 | AA4VSO125LR2G / 10R-PPB13K57 |
| R910905021 | AA4VSO125LR2G / 10R-PPB13N00 |
| R910911657 | AA4VSO125LR2G / 10R-PPB13N00-SO86 |
| R910906230 | AA4VSO125LR2G / 10R-PZB13K00-SO42 |
| R910907890 | AA4VSO125LR2G / 10R-PZB13K31 |
| R910912652 | AA4VSO125LR2G / 10R-PZB13K34 |
| R910923077 | AA4VSO125LR2G / 10R-PZB13N00 |
| R910920759 | AA4VSO125LR2G / 10R-VPB13N00 |
| R910919062 | AA4VSO125LR2G / 10R-VZB13N00 |
| R910945548 | AA4VSO125LR2G / 22L-PPB13N00 |
| R910949365 | AA4VSO125LR2G / 22R-PPB13K02 |
| R910986087 | AA4VSO125LR2G / 22R-PPB13K24 |
| R910941394 | AA4VSO125LR2G / 22R-PPB13K31 |
| R910941542 | AA4VSO125LR2G / 22R-PPB13K34 |
| R910990215 | AA4VSO125LR2G / 22R-PPB13K57 |
| R910945327 | AA4VSO125LR2G / 22R-PPB13L60 |
| R910940247 | AA4VSO125LR2G / 22R-PPB13N00 |
| R910983708 | AA4VSO125LR2G / 22R-PPB13N00-SO86 |
| R910992475 | AA4VSO125LR2G / 22R-PPB13N00-SO134 |
| R910984035 | AA4VSO125LR2G / 22R-PPB13O60 |
| R987206523 | AA4VSO125LR2G / 22R-PZB13K01 |
| R902438722 | AA4VSO125LR2G / 22R-PZB13K07 |
| R910940309 | AA4VSO125LR2G / 22R-PZB13K31 |
| R902436859 | AA4VSO125LR2G / 22R-PZB13K57 |
| R910940308 | AA4VSO125LR2G / 22R-PZB13N00 |
| R910970116 | AA4VSO125LR2G / 22R-VPB13G80 |
| R910962440 | AA4VSO125LR2G / 22R-VPB13N00 |
| R910985154 | AA4VSO125LR2G / 22R-VZB13N00 |
| R902433894 | AA4VSO125LR2G / 30L-PPB13N00-SO91 |
| R902445263 | AA4VSO125LR2G / 30R-FPB13N00 |
| R902417178 | AA4VSO125LR2G / 30R-PPB13K01 |
| R902425166 | AA4VSO125LR2G / 30R-PPB13K02 |
| R902415985 | AA4VSO125LR2G / 30R-PPB13K07 |
| R902464518 | AA4VSO125LR2G / 30R-PPB13K34 |
| R902416553 | AA4VSO125LR2G / 30R-PPB13K37 |
| R902404454 | AA4VSO125LR2G / 30R-PPB13K57 |
| R902427934 | AA4VSO125LR2G / 30R-PPB13K68 |
| R902454760 | AA4VSO125LR2G / 30R-PPB13K99 |
| R902446383 | AA4VSO125LR2G / 30R-PPB13KB6 |
| R902463342 | AA4VSO125LR2G / 30R-PPB13L30 |
| R902416806 | AA4VSO125LR2G / 30R-PPB13L60 |
| R902534592 | AA4VSO125LR2G / 30R-PPB13M10 |
| R910999783 | AA4VSO125LR2G / 30R-PPB13N00 |
| R902454934 | AA4VSO125LR2G / 30R-PPB13N00-S1475 |
| R902403992 | AA4VSO125LR2G / 30R-PPB13N00-SO86 |
| R902415460 | AA4VSO125LR2G / 30R-PPB13N00-SO91 |
| R910999786 | AA4VSO125LR2G / 30R-PPB13N00-SO134 |
| R902406995 | AA4VSO125LR2G / 30R-PPB13N00E |
| R902515123 | AA4VSO125LR2G / 30R-PPB25H00 |
| R902516240 | AA4VSO125LR2G / 30R-PPB25L30 |
| R902482329 | AA4VSO125LR2G / 30R-PPB25N00 |
| R902516561 | AA4VSO125LR2G / 30R-PPB25UB5 |
| R902464579 | AA4VSO125LR2G / 30R-PZB13K01 |
| R902445211 | AA4VSO125LR2G / 30R-PZB13K07 |
| R902446529 | AA4VSO125LR2G / 30R-PZB13K33 |
| R902411085 | AA4VSO125LR2G / 30R-PZB13K57 |
| R902404124 | AA4VSO125LR2G / 30R-PZB13N00 |
| R902543917 | AA4VSO125LR2G / 30R-PZB25N00-SO410 |
| R902513086 | AA4VSO125LR2G / 30R-PZB25U31-S1475 |
| R902513045 | AA4VSO125LR2G / 30R-PZB25U34-S1475 |
| R902496606 | AA4VSO125LR2G / 30R-PZB25U68 |
| R902512978 | AA4VSO125LR2G / 30R-PZB25U99-S1475 |
| R910998421 | AA4VSO125LR2G / 30R-VPB13G80 |
| R902419188 | AA4VSO125LR2G / 30R-VPB13K01 |
| R910998067 | AA4VSO125LR2G / 30R-VPB13N00 |
| R902511169 | AA4VSO125LR2G / 30R-VPB25U01 |
| R902510827 | AA4VSO125LR2G / 30R-VPB25U34 |
| R902465043 | AA4VSO125LR2G / 30R-VZB13K34-SO213 |
| R902432756 | AA4VSO125LR2G / 30R-VZB13N00 |
| R902465044 | AA4VSO125LR2G / 30R-VZB13N00-SO213 |
| R902561433 | AA4VSO125LR2G / 30R-VZB25U68 |
| R902531957 | AA4VSO125LR2G / 30R-PPB25U99 |
| R910915863 | AA4VSO125LR2GF / 10L-PPB13N00 |
| R910926139 | AA4VSO125LR2GF / 10R-PPB13K00-SO138 |
| R910935953 | AA4VSO125LR2GF / 10R-PPB13K26 |
| R910933448 | AA4VSO125LR2GF / 10R-PPB13K31 |
| R910906280 | AA4VSO125LR2GF / 10R-PPB13K34 |
| R910922163 | AA4VSO125LR2GF / 10R-PPB13K57 |
| R910904564 | AA4VSO125LR2GF / 10R-PPB13N00 |
| R910912612 | AA4VSO125LR2GF / 10R-PZB13K00-SO108 |
| R910925492 | AA4VSO125LR2GF / 10R-PZB13K00-SO297 |
| R910912609 | AA4VSO125LR2GF / 10R-PZB13K31-SO107 |
| R910906267 | AA4VSO125LR2GF / 10R-PZB13N00 |
| R910906282 | AA4VSO125LR2GF / 10R-PZB13N00 |
| R910963994 | AA4VSO125LR2GF / 22R-PPB13K01 |
| R910960568 | AA4VSO125LR2GF / 22R-PPB13K04 |
| R910960386 | AA4VSO125LR2GF / 22R-PPB13K06 |
| R910946288 | AA4VSO125LR2GF / 22R-PPB13K57 |
| R910938228 | AA4VSO125LR2GF / 22R-PPB13N00 |
| R910968290 | AA4VSO125LR2GF / 22R-PPB13P11 |
| R902491345 | AA4VSO125LR2GF / 30R-PPB13K04 |
| R902464514 | AA4VSO125LR2GF / 30R-PPB13K07 |
| R902420325 | AA4VSO125LR2GF / 30R-PPB13K34 |
| R902417565 | AA4VSO125LR2GF / 30R-PPB13N00 |
| R902462792 | AA4VSO125LR2GF / 30R-PZB13K34 |
| R902466974 | AA4VSO125LR2GF / 30R-PZB13K99-SO108 |
| R902429073 | AA4VSO125LR2GF / 30R-PZB13N00 |
| R902546201 | AA4VSO125LR2GF / 30R-PZB25U07-SO265 |
| R902486313 | AA4VSO125LR2GF / 30R-PZB25U33 |
| R902535240 | AA4VSO125LR2GF / 30R-VPB25U01 |
| R910927615 | AA4VSO125LR2GH / 10R-PPB13K34 |
| R910906720 | AA4VSO125LR2GH / 10R-PPB13N00 |
| R910912566 | AA4VSO125LR2GH / 10R-PZB13N00 |
| R910961603 | AA4VSO125LR2GH / 22R-PPB13K01 |
| R910942368 | AA4VSO125LR2GH / 22R-PPB13K51 |
| R910945743 | AA4VSO125LR2GH / 22R-PPB13N00 |
| R910962458 | AA4VSO125LR2GH / 22R-VPB13K01 |
| R902429617 | AA4VSO125LR2GH / 30R-PPB13N00 |
| R902452439 | AA4VSO125LR2GH / 30R-PZB13N00 |
| R910990828 | AA4VSO125LR2GHM / 22R-PPB13N00 |
| R902456054 | AA4VSO125LR2GM / 30R-PPB13N00 |
| R910921727 | AA4VSO125LR2GN / 10R-PPB13K00-SO1 |
| R910916148 | AA4VSO125LR2GN / 10R-PPB13K25 |
| R910925475 | AA4VSO125LR2GN / 10R-PPB13K34 |
| R910906723 | AA4VSO125LR2GN / 10R-PPB13N00 |
| R910931715 | AA4VSO125LR2GN / 10R-PZB13K26 |
| R910925477 | AA4VSO125LR2GN / 10R-PZB13N00 |
| R910920217 | AA4VSO125LR2GN / 10R-VPB13N00 |
| R910946226 | AA4VSO125LR2GN / 22R-PPB13G60 |
| R910962905 | AA4VSO125LR2GN / 22R-PPB13K01 |
| R910964904 | AA4VSO125LR2GN / 22R-PPB13K02 |
| R910943319 | AA4VSO125LR2GN / 22R-PPB13K26 |
| R910949306 | AA4VSO125LR2GN / 22R-PPB13K51 |
| R910943387 | AA4VSO125LR2GN / 22R-PPB13N00 |
| R910967390 | AA4VSO125LR2GN / 22R-PZB13K99 |
| R910947391 | AA4VSO125LR2GN / 22R-PZB13N00 |
| R902404172 | AA4VSO125LR2GN / 30R-PPB13K33 |
| R902410119 | AA4VSO125LR2GN / 30R-PPB13N00 |
| R902431785 | AA4VSO125LR2GN / 30R-PPB13N00-SO213 |
| R902492002 | AA4VSO125LR2GN / 30R-PPB13N00E |
| R902556208 | AA4VSO125LR2GN / 30R-PPB25G40 |
| R902495706 | AA4VSO125LR2GN / 30R-PPB25N00 |
| R902445244 | AA4VSO125LR2GN / 30R-PZB13N00 |
| R902488530 | AA4VSO125LR2GN / 30R-PZB25N00 |
| R902468643 | AA4VSO125LR2GN / 30R-VZB13N00-SO213 |
| R910963972 | AA4VSO125LR2GY / 22R-PZB13N00 |
| R902561911 | AA4VSO125LR2GY / 30R-PPB13N00 |
| R910910857 | AAA4VSO125LR2G / 10R-VKD63N00-SO62 |
| R910985967 | AAA4VSO125LR2G / 22R-VKD63N00-SO62 |
| R902500223 | AAA4VSO125LR2G / 30R-EKD63N00 |
| R902546921 | AAA4VSO125LR2G / 30R-EKD75U99-S1439 |
| R902500435 | AAA4VSO125LR2G / 30R-PKD63K05 |
| R902402660 | AAA4VSO125LR2G / 30R-PKD63N00 |
| R902406197 | AAA4VSO125LR2G / 30R-PKD63N00E |
| R902500362 | AAA4VSO125LR2G / 30R-PSD63K17 |
| R902500363 | AAA4VSO125LR2G / 30R-PSD63N00 |
| R902416978 | AAA4VSO125LR2G / 30R-VKD63N00 |
| R902555910 | AAA4VSO125LR2G / 30R-VKD75U07 |
| R902493369 | AAA4VSO125LR2G / 30R-VKD75U68E |
| R902466970 | AAA4VSO125LR2G / 30R-VKD75U99E |
| R902434894 | AAA4VSO125LR2G / 30R-VSD63K38 |
| R902406354 | AAA4VSO125LR2G / 30R-VSD63K38E |
| R910933054 | AAA4VSO125LR2GF / 10R-PKD63K08 |
| R910920677 | AAA4VSO125LR2GF / 10R-PKD63NOO-SO62 |
| R910904572 | AAA4VSO125LR2GF / 10R-VKD63K00-SO1 |
| R910905757 | AAA4VSO125LR2GF / 10R-VKD63N00-SO62 |
| R910943035 | AAA4VSO125LR2GF / 22R-PKD63N00 |
| R910941831 | AAA4VSO125LR2GF / 22R-PKD63N00-SO62 |
| R910984020 | AAA4VSO125LR2GF / 22R-PKD63N00-SO840 |
| R902404440 | AAA4VSO125LR2GF / 30R-PKD63N00 |
| R902407783 | AAA4VSO125LR2GF / 30R-PKD63N00-SO168 |
| R902406683 | AAA4VSO125LR2GF / 30R-PKD63N00ESO168 |
| R910919570 | AAA4VSO125LR2GH / 10R-PKD63N00 |
| R910919571 | AAA4VSO125LR2GH / 10R-PKD63N00-SO62 |
| R902574654 | AAA4VSO125LR2GM / 30R-PKD63N00 |
| R910992139 | AAA4VSO125LR2GN / 22R-PKD63N00-SO62 |
| R902404398 | AAA4VSO125LR2GN / 30R-PKD63N00 |
| R902435221 | AAA4VSO125LR2GN / 30R-VSD63K38 |
| R902406360 | AAA4VSO125LR2GN / 30R-VSD63K38E |
| R987051224 | A4VSO125LR2G / 30R-PPB13N00-SO562 |
| R900053356 | A4VSO125LR2G / 10R-PZB13K31 (30-1450) |
| R987062165 | A4VSO125LR2G / 30R-PPB13N00KW37-1500G |
| R987459681 | A4VSO125LR2G / 30R-PPB13U99KW37-1450G |
| R987480525 | A4VSO125LR2G / 30R-PPB25U99KW451750G |
| R987486430 | A4VSO125LR2G / 30R-PPB25U99KW751450G |
| R902516562 | A4VSO125LR2G / 30R + A10VSO71DFLR / 31R |
| R902465042 | A4VSO125LR2G / 30R + A4VSO125LR2G / 30R |
| R902513046 | A4VSO125LR2G / 30R + A4VSO125LR2G / 30R |
| R902468642 | A4VSO125LR2G / 30R + A4VSO125LR2GN / 30R-SO213 |
| R902513085 | A4VSO125LR2G / 30R + A4VSO40LR2G / 10R |
| R902486311 | A4VSO125LR2GF / 30R + A4VSO71LR2GF / 10R |
| R987353279 | A4VSO125LR2GN / 30RPPB25N00 |
| R902517450 | A4VSO250LR2GN / 30R + A4VSO125LR2GN / 30R |
| R902488528 | A4VSO250LR2GN / 30R + A4VSO125LR2GN / 30R |
Saar HK Elektronik Limited
Ekle: Rm 1506,28 # Moyu Rd, Şangay, Çin, 201805
Tel: + 86-21-5956 1370
Faks: + 86-21-5012 3536
E-posta: jason@hydraulicpumpvalve.com
Skype: jason.saar
Mobil / WhatsApp: +8613918187448
İlgili kişi: Mr. Jason
A10VSO18 Serisi Rexroth Hidrolik Pompa, Değişken Eksenel Pistonlu Pompa
Uzun Servis Ömrü ile Değişken Yüksek Basınçlı Hidrolik Pompa A10VSO45 Serisi
Hızlı Hızlı Rexroth Hidrolik Pompa, A10VSO71 Serisi Değişken Pistonlu Hidrolik Pompa
Hydac Basınç Filtresi Elemanının Değiştirilmesi 0240D 0260D 0280D Serisi ISO Onaylandı
Basınç Değiştirme Filtresi Elemanı Hydac 0800D 0900D 1320D 1500D Serisi
Hydac 0240R Serisi Hidrolik Dönüş Hattı Filtresi İçin Dönüş Hattı Elemanları
Parker Denison Hidrolik Pistonlu Değişken Hacimli PVP16 Serisi Pompalar
PVP41 Serisi Parker Denison Hidrolik Pompaları Değişken Hacimli Pistonlu Pompalar
PV140 PV180 Serisi Parker Hidrolik Elde Eksenel Pistonlu Pompa Pompaları
