| RM 1902, EASEY BLDG., 253-261 HENNESSY YOLU, WANCHAI, HONGKONG | jason@hydraulicpumpvalve.com |
 |
| Menşe yeri: | Almanya |
| Marka adı: | Rexroth |
| Model numarası: | 4WRZE25W6-220-73 / 6EG24N9K31 / F1D3M 4WRZE25EA325-70 / 6EG24N9ETK31 / A1M 4WRZE25W6-220-71 / 6EG24N |
| Min sipariş miktarı: | 1 |
|---|---|
| Fiyat: | On request |
| Ambalaj bilgileri: | Standart kağıt kutusu |
| Teslim süresi: | 7-10DAYS |
| Ödeme koşulları: | T/t, Western Union |
| Yetenek temini: | aylık 100pcs |
| Malzeme No: | R901126815 | Tip No.: | 4WRZE25E1-220-7X / 6EG24N9K31F1D3M |
|---|---|---|---|
| Vurgulamak: | rexroth proportional valve,hidrolik basınç valfi |
||

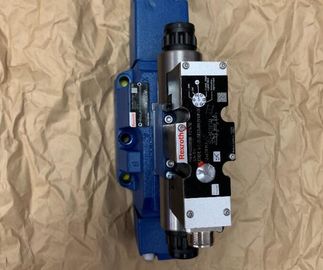

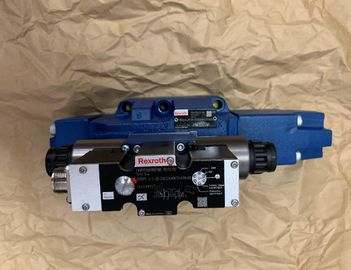

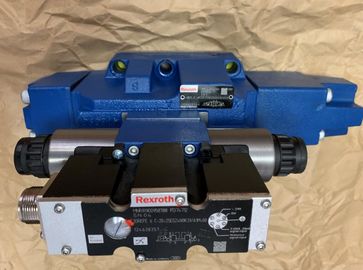

Rexroth 4WRZE Pilot kumandalı, elektrik pozisyon geri beslemesiz, entegre elektronik sistemli (OBE) oransal yön valfleri
Boyut 10, 16, 25, 32, 52
7X bileşen serisi
Maksimum işletme basıncı 350 bar
Maksimum akış 2800 l / dak
Özellikleri
Entegre elektronik sistemli (OBE) pilot kontrollü, 2 kademeli oransal yön valfleri
Bir akışın yönünün ve büyüklüğünün kontrolü
Merkezi dişli ve çıkarılabilir bobini ile orantılı solenoidler ile çalışma
Alt plaka montajı için: ISO 4401'e göre taşıma kalıbı
İsteğe bağlı yardımcı işletim cihazı
Yay merkezli kontrol biriktirme
Bu parametrelerin dışındaki uygulamalar için lütfen bize danışın!
| tip | 4WRZE | ||||||
| Boyut | 10 | 16 | 25 | 32 | 52 | ||
| Kurulum pozisyonu | Herhangi bir, tercihen yatay | ||||||
| ortam sıcaklık aralığı | ° C | -20… +50 | |||||
| Depolama sıcaklığı aralığı | ° C | -20… +80 | |||||
| Ağırlık | Alt plaka montajı için | kilogram | 8 | 12.1 | 18.4 | 42.2 | 79.7 |
| Flanş bağlantısı için | kilogram | 77.7 | |||||
| "D3" ile | kilogram | 8.5 | 12.6 | 18.9 | 42,7 | 80.2 | |
| DIN EN 60068-2-6 uyarınca sinüs testi | 10 döngü, 10… 2000 .. 1 oktav / dak logaritmik frekans değiştirme hızı ile 10 Hz, 5 ila 57 Hz, genlik 1.5 mm (pp), 57 ila 2000 Hz, genlik 10 g, 3 eksen | ||||||
| DIN EN 60068-2-64'e göre gürültü testi | 20… 2000 Hz, genlik 0.05g2 / Hz (10gRMS) 3 eksen, test süresi eksen başına 30 dakika | ||||||
| DIN EN 60068-2-27 uyarınca şok testi | Yarım sinüs 15g / 11 ms, 3 kere pozitif ve 3 kez negatif yönde 3 eksen, 3 eksen | ||||||
| DIN EN 60068-2-30 uyarınca nem ısısı | Değişken 2: +25 ° C… +55 ° C,% 90…% 97 bağıl nem, 2 döngü á 24 saat | ||||||
| Boyut | 10 | 16 | 25 | 32 | 52 | |||
| Maksimum işletme basıncı | bar | 315 | 350 | |||||
| Çalışma basıncı aralığı | Harici pilot yağ beslemesi | bar | 30… 100 | 20… 100 | ||||
| "D3" olmayan pilot kontrol vanası, iç pilot yağ geri dönüşü | bar | 30… 100 | ||||||
| Dahili pilot yağ beslemesi | bar | 100… 315 | 100… 350 | |||||
| Maksimum dönüş akış basıncı | Port T ve R, harici pilot yağ dönüşü | bar | 315 | 250 | 150 | 250 | ||
| Port T, dahili pilot yağ dönüşü | bar | 30 | ||||||
| Liman Y | bar | 30 | ||||||
| Maksimum akış | l / dk | 170 | 460 | 870 | 1600 | 2800 | ||
| Nominal akış | l / dk | 25 50 85 | 100 125 150 180 | 220 325 | 360 520 | 1000 | ||
| Pilot akışı | giriş sinyali 0 → 100% | Bağlantı Noktası X ve Y | l / dk | 3.5 | 5.5 | 7 | 15.9 | 7 |
| Pilot hacmi | Anahtarlama işlemi 0 → 100% | cm³ | 1.7 | 4.6 | 10 | 26,5 | 54,3 | |
| Hidrolik sıvı sıcaklık aralığı | ° C | -20… +80 | ||||||
| tercihen | ° C | -40… +50 | ||||||
| Viskozite aralığı | mm² / s | 20… 380 | ||||||
| tercihen | mm² / s | 30… 46 | ||||||
| Hidrolik sıvısının maksimum kabul edilebilir kirlilik derecesi, ISO 4406 (c) 1) uyarınca temizlik sınıfı | Pilot kontrol vanası | ISO 4406'ya (c) göre Sınıf 18/16/13 | ||||||
| Ana valf | ISO 4406'ya göre sınıf 20/18/15 (c) | |||||||
| gecikme | % | ≤ 6 | ||||||
| 1) | Bileşenler için belirtilen temizlik sınıfları hidrolik sistemlere yapıştırılmalıdır. Etkili filtreleme, arızaları önler ve bileşenlerin ömrünü aynı anda arttırır. Filtrelerin seçimi için www.boschrexroth.com/filter adresini ziyaret edin. |
| Boyut | 10 | 16 | 25 | 32 | 52 | ||
| Voltaj tipi | Doğrudan gerilim | ||||||
| Komut değeri örtüşme | % | 15 | |||||
| Maksimum solenoid akım | bir | 2.5 | |||||
| Maksimum akım tüketimi | amplifikatörün | bir | 1.8 | ||||
| amplifikatörün (darbe akımı) | bir | 3 | |||||
| Solenoid bobin direnci | 20 ° C'de soğuk değer | Ω | 2 | ||||
| Maksimum sıcak değeri | Ω | 3 | |||||
| Hesaplanan zaman | % | 100 | |||||
| Maksimum bobin sıcaklığı 1) | ° C | + 150 | |||||
| DIN EN 60529 uyarınca koruma sınıfı | IP65 (birleşme konektörü monte edilmiş ve kilitli olarak) | ||||||
| Güç kaynağı | V | 24 | |||||
| Besleme gerilimi aralığı | V | 19.4… 35 | |||||
| Topraklama (GND) | V | 0 | |||||
| Komut değeri girişi | "A1" | V | 10 | ||||
| Komut değeri giriş aralığı | "F1" | mA | 4… 20 | ||||
| R901252537 | 4WRZE25E1-220-7X / 6EG24EK31 / A1M |
| R900954668 | 4WRZE25E1-220-7X / 6EG24ETK31 / A1D3M |
| R900973678 | 4WRZE25E1-220-7X / 6EG24N9EK31 / A1D3M |
| R900718359 | 4WRZE25E1-220-7X / 6EG24N9EK31 / F1D3M |
| R978911148 | 4WRZE25E1-220-7X / 6EG24N9EK31 / F1D3V |
| R900247476 | 4WRZE25E1-220-7X / 6EG24N9EK31 / F1V |
| R901094997 | 4WRZE25E1-220-7X / 6EG24N9ETK31 / A1D3M |
| R900965034 | 4WRZE25E1-220-7X / 6EG24N9ETK31 / A1D3V |
| R900767098 | 4WRZE25E1-220-7X / 6EG24N9ETK31 / F1D3M |
| R901060768 | 4WRZE25E1-220-7X / 6EG24N9ETK31 / F1D3V |
| R900739329 | 4WRZE25E1-220-7X / 6EG24N9ETK31 / F1V |
| R900930164 | 4WRZE25E1-220-7X / 6EG24N9K31 / A1D3V |
| R900765376 | 4WRZE25E1-220-7X / 6EG24N9K31 / A1M |
| R900960836 | 4WRZE25E1-220-7X / 6EG24N9K31 / A1V |
| R901225537 | 4WRZE25E1-220-7X / 6EG24N9K31 / F1M |
| R900957763 | 4WRZE25E1-220-7X / 6EG24N9K31 / F1V |
| R901126815 | 4WRZE25E1-220-7X / 6EG24N9K31F1D3M |
| R901086136 | 4WRZE25E1-220-7X / 6EG24N9TK31 / A1D3M |
| R901314662 | 4WRZE25E1-220-7X / 6EG24N9TK31 / A1D3M = LB |
| R901060581 | 4WRZE25E1-220-7X / 6EG24TK31 / A1D3M |
| R901315396 | 4WRZE25E1-325-7X / 6EG24EK31 / A1M |
| R900954669 | 4WRZE25E1-325-7X / 6EG24ETK31 / A1D3M |
| R901272135 | 4WRZE25E1-325-7X / 6EG24ETK31 / A1D3V |
| R901131625 | 4WRZE25E1-325-7X / 6EG24ETK31 / F1D3M |
| R900964771 | 4WRZE25E1-325-7X / 6EG24K31 / A1D3M |
| R900747095 | 4WRZE25E1-325-7X / 6EG24N9EK31 / A1D3M |
| R900956734 | 4WRZE25E1-325-7X / 6EG24N9EK31 / A1D3V |
| R901046275 | 4WRZE25E1-325-7X / 6EG24N9EK31 / A1M |
| R900617973 | 4WRZE25E1-325-7X / 6EG24N9EK31 / A1V |
| R900748463 | 4WRZE25E1-325-7X / 6EG24N9EK31 / F1D3M |
| R978914695 | 4WRZE25E1-325-7X / 6EG24N9EK31 / F1D3V |
| R901008490 | 4WRZE25E1-325-7X / 6EG24N9ETK31 / A1D3M |
| R978917738 | 4WRZE25E1-325-7X / 6EG24N9ETK31 / A1D3V |
| R901276819 | 4WRZE25E1-325-7X / 6EG24N9ETK31 / A1D3WG0 ve |
| R901307658 | 4WRZE25E1-325-7X / 6EG24N9ETK31 / A1M |
| R901188957 | 4WRZE25E1-325-7X / 6EG24N9ETK31 / F1D3M |
| R901178304 | 4WRZE25E1-325-7X / 6EG24N9ETK31 / F1D3V |
| R901079934 | 4WRZE25E1-325-7X / 6EG24N9ETK31 / F1M |
| R900765377 | 4WRZE25E1-325-7X / 6EG24N9K31 / A1D3M |
| R978910272 | 4WRZE25E1-325-7X / 6EG24N9K31 / A1D3V |
| R900942767 | 4WRZE25E1-325-7X / 6EG24N9K31 / A1V |
| R901088213 | 4WRZE25E1-325-7X / 6EG24N9K31 / F1D3M |
| R901099818 | 4WRZE25E1-325-7X / 6EG24N9K31 / F1D3V |
| R900943864 | 4WRZE25E1-325-7X / 6EG24N9K31 / F1V |
| R901055701 | 4WRZE25E1-325-7X / 6EG24N9TK31 / F1D3M |
| R901140321 | 4WRZE25E1-325-7X / 6EG24N9TK31 / F1M |
| R900954670 | 4WRZE25E220-7X / 6EG24ETK31 / A1D3M |
| R901031159 | 4WRZE25E220-7X / 6EG24ETK31 / F1D3M |
| R901383440 | 4WRZE25E220-7X / 6EG24K31 / A1D3M |
| R900954671 | 4WRZE25E220-7X / 6EG24K31 / A1M |
| R900753206 | 4WRZE25E220-7X / 6EG24K31 / A1V |
| R900787901 | 4WRZE25E220-7X / 6EG24N9EK31 / A1D3M |
| R987033194 | 4WRZE25E220-7X / 6EG24N9EK31 / A1D3M |
| R901272350 | 4WRZE25E220-7X / 6EG24N9EK31 / A1D3V |
| R901033631 | 4WRZE25E220-7X / 6EG24N9EK31 / A1M |
| R978916577 | 4WRZE25E220-7X / 6EG24N9EK31 / A1V |
| R978911947 | 4WRZE25E220-7X / 6EG24N9EK31 / F1D3V |
| R901122588 | 4WRZE25E220-7X / 6EG24N9EK31 / F1V |
| R900617675 | 4WRZE25E220-7X / 6EG24N9ETK31 / A1D3M |
| R900953095 | 4WRZE25E220-7X / 6EG24N9ETK31 / A1D3V |
| R901289224 | 4WRZE25E220-7X / 6EG24N9ETK31 / A1M |
| R901034829 | 4WRZE25E220-7X / 6EG24N9ETK31 / F1D3M |
| R900948359 | 4WRZE25E220-7X / 6EG24N9ETK31 / F1D3V |
| R900704949 | 4WRZE25E220-7X / 6EG24N9ETK31 / F1M |
| R900925739 | 4WRZE25E220-7X / 6EG24N9ETK31 / F1V |
| R900976047 | 4WRZE25E220-7X / 6EG24N9K31 / A1D3M |
| R900963715 | 4WRZE25E220-7X / 6EG24N9K31 / A1D3V |
| R901184538 | 4WRZE25E220-7X / 6EG24N9K31 / A1M |
| R978919540 | 4WRZE25E220-7X / 6EG24N9K31 / A1V |
| R901110478 | 4WRZE25E220-7X / 6EG24N9K31 / F1D3M |
| R900775139 | 4WRZE25E220-7X / 6EG24N9K31 / F1D3V |
| R901110477 | 4WRZE25E220-7X / 6EG24N9K31 / F1M |
| R901313532 | 4WRZE25E220-7X / 6EG24N9TK31 / A1M |
| R901090934 | 4WRZE25E220-7X / 6EG24N9TK31 / F1M |
| R901171561 | 4WRZE25E220-7X / 6EG24TK31 / A1M |
| R900617197 | 4WRZE25E3-220-7X / 6EG24N9EK31 / A1D3V |
| R901108371 | 4WRZE25E3-220-7X / 6EG24N9EK31 / F1D3M |
| R901131831 | 4WRZE25E3-220-7X / 6EG24N9EK31 / F1D3V |
| R978914696 | 4WRZE25E3-220-7X / 6EG24N9EK31 / F1D3V |
| R901036568 | 4WRZE25E3-220-7X / 6EG24N9ETK31 / A1D3M |
| R901126880 | 4WRZE25E3-220-7X / 6EG24N9ETK31 / F1D3V |
| R900768714 | 4WRZE25E3-325-7X / 6EG24EK31 / A1D3M |
| R901296029 | 4WRZE25E3-325-7X / 6EG24EK31 / A1M |
| R900709470 | 4WRZE25E3-325-7X / 6EG24N9EK31 / A1D3V |
| R901199625 | 4WRZE25E3-325-7X / 6EG24N9EK31 / F1D3V |
| R900247477 | 4WRZE25E3-325-7X / 6EG24N9EK31 / F1V |
| R901036570 | 4WRZE25E3-325-7X / 6EG24N9ETK31 / A1D3M |
| R900956544 | 4WRZE25E3-325-7X / 6EG24N9ETK31 / A1D3V |
| R900925012 | 4WRZE25E3-325-7X / 6EG24N9ETK31 / A1V |
| R900938298 | 4WRZE25E3-325-7X / 6EG24N9ETK31 / A1V = LB |
| R901076979 | 4WRZE25E3-325-7X / 6EG24N9ETK31 / F1D3M |
| R900953882 | 4WRZE25E3-325-7X / 6EG24N9ETK31 / F1D3V |
| R900953675 | 4WRZE25E3-325-7X / 6EG24N9ETK31 / F1V |
| R900955557 | 4WRZE25E3-325-7X / 6EG24N9K31 / A1D3V |
| R901094959 | 4WRZE25E325-7X / 6EG24EK31 / A1D3M |
| R900954672 | 4WRZE25E325-7X / 6EG24ETK31 / A1D3M |
| R901333631 | 4WRZE25E325-7X / 6EG24ETK31 / A1M |
| R901031561 | 4WRZE25E325-7X / 6EG24ETK31 / A1V |
| R901094532 | 4WRZE25E325-7X / 6EG24ETK31 / F1D3M |
| R901299280 | 4WRZE25E325-7X / 6EG24ETK31 / F1M |
| R900954673 | 4WRZE25E325-7X / 6EG24K31 / A1D3M |
| R901259316 | 4WRZE25E325-7X / 6EG24K31 / A1D3V |
| R901050603 | 4WRZE25E325-7X / 6EG24K31 / A1M |
| R900962775 | 4WRZE25E325-7X / 6EG24K31 / A1V |
| R978033632 | 4WRZE25E325-7X / 6EG24N9EK31 / A1D3M |
| R900955077 | 4WRZE25E325-7X / 6EG24N9EK31 / A1D3V |
| R901004386 | 4WRZE25E325-7X / 6EG24N9EK31 / A1M |
| R978916578 | 4WRZE25E325-7X / 6EG24N9EK31 / A1V |
| R901204540 | 4WRZE25E325-7X / 6EG24N9EK31 / F1D3M |
| R901147386 | 4WRZE25E325-7X / 6EG24N9EK31 / F1M |
| R900741018 | 4WRZE25E325-7X / 6EG24N9ETK31 / A1D3M |
| R900946756 | 4WRZE25E325-7X / 6EG24N9ETK31 / A1D3V |
| R901017352 | 4WRZE25E325-7X / 6EG24N9ETK31 / A1M |
| R900945994 | 4WRZE25E325-7X / 6EG24N9ETK31 / A1V |
| R901208568 | 4WRZE25E325-7X / 6EG24N9ETK31 / F1D3M |
| R900953731 | 4WRZE25E325-7X / 6EG24N9ETK31 / F1D3V |
| R900969789 | 4WRZE25E325-7X / 6EG24N9K31 / A1D3M |
| R900946571 | 4WRZE25E325-7X / 6EG24N9K31 / A1D3V |
| R900755997 | 4WRZE25E325-7X / 6EG24N9K31 / A1M |
| R900967051 | 4WRZE25E325-7X / 6EG24N9K31 / A1V |
| R900755370 | 4WRZE25E325-7X / 6EG24N9K31 / F1D3M |
| R901034025 | 4WRZE25E325-7X / 6EG24N9K31 / F1D3V |
| R901225529 | 4WRZE25E325-7X / 6EG24N9K31 / F1M |
| R901366139 | 4WRZE25E325-7X / 6EG24N9TK31 / A1D3M |
| R901313534 | 4WRZE25E325-7X / 6EG24N9TK31 / A1M |
| R900738833 | 4WRZE25E325-7X / 6EG24N9TK31 / F1D3M |
| R900948334 | 4WRZE25E325-7X / 6EG24NJTK31 / F1V |
| R901286016 | 4WRZE25E5-325-7X / 6EG24N9ETK31 / A1D3M |
| R900976146 | 4WRZE25EA220-7X / 6EG24N9K31 / A1M |
| R901076959 | 4WRZE25EA220-7X / 6EG24N9K31 / F1M |
| R901214448 | 4WRZE25EA325-7X / 6EG24ETK31 / A1D3M |
| R900954674 | 4WRZE25EA325-7X / 6EG24ETK31 / A1M |
| R900959335 | 4WRZE25EA325-7X / 6EG24ETK31 / F1M |
| R901235648 | 4WRZE25EA325-7X / 6EG24K31 / A1D3V |
| R901268097 | 4WRZE25EA325-7X / 6EG24K31 / A1M |
| R901221981 | 4WRZE25EA325-7X / 6EG24K31 / F1D3V |
| R901307373 | 4WRZE25EA325-7X / 6EG24N9EK31 / A1D3V |
| R978911403 | 4WRZE25EA325-7X / 6EG24N9ETK31 / A1M |
| R901253035 | 4WRZE25EA325-7X / 6EG24N9ETK31 / F1D3M |
| R901166921 | 4WRZE25EA325-7X / 6EG24N9K31 / A1D3M |
| R978009082 | 4WRZE25EA325-7X / 6EG24N9K31 / A1M |
| R900975860 | 4WRZE25EB220-7X / 6EG24K31 / A1M |
| R978915907 | 4WRZE25EB220-7X / 6EG24N9K31 / A1V |
| R901141978 | 4WRZE25EB220-7X / 6EG24N9K31 / F1M |
| R901094813 | 4WRZE25EB325-7X / 6EG24K31 / A1M |
| R978011747 | 4WRZE25EB325-7X / 6EG24N9EK31 / A1V |
| R901236255 | 4WRZE25EB325-7X / 6EG24N9ETK31 / A1D3M |
| R978918454 | 4WRZE25EB325-7X / 6EG24N9ETK31 / A1D3V |
| R901446642 | 4WRZE25EB325-7X / 6EG24N9K31 / A1D3M |
| R901378806 | 4WRZE25R220-7X / 6EG24N9K31 / A1D3V |
| R901439994 | 4WRZE25R3-220-7X / 6EG24N5ETK31 / A1D3M |
| R901423865 | 4WRZE25R3-220-7X / 6EG24NJETK31 / A1D3M |
| R900974390 | 4WRZE25R3-325-7X / 6EG24N9EK31 / A1M |
| R900967570 | 4WRZE25R3-325-7X / 6EG24N9ETK31 / A1D3M |
| R901262092 | 4WRZE25R3-325-7X / 6EG24N9ETK31 / F1D3M |
| R900974120 | 4WRZE25R3-325-7X / 6EG24N9K31 / A1M |
| R901362879 | 4WRZE25R325-7X / 6EG24N9EK31 / A1D3M |
| R901362563 | 4WRZE25R325-7X / 6EG24N9EK31 / A1M |
| R901161922 | 4WRZE25R325-7X / 6EG24N9ETK31 / A1D3M |
| R901357582 | 4WRZE25R325-7X / 6EG24N9ETK31 / A1M |
| R900700446 | 4WRZE25R325-7X / 6EG24N9K31 / A1D3M |
| R901053630 | 4WRZE25R5-325-7X / 6EG24N9ETK31 / F1M |
| R978919294 | 4WRZE25W325-7X / 6EG24N9ETK31 / A1D3M |
| R978910058 | 4WRZE25W325-7X / 6EG24N9ETK31 / F1D3M |
| R901262077 | 4WRZE25W5-325-7X / 6EG24N9ETK31 / F1D3M |
| R900616436 | 4WRZE25W5-325-7X / 6EG24N9ETK31 / F1D3V |
| R901308615 | 4WRZE25W5-325-7X / 6EG24N9TK31 / F1D3V |
| R901052964 | 4WRZE25W6-220-7X / 6EG24EK31 / A1D3M |
| R901051672 | 4WRZE25W6-220-7X / 6EG24EK31 / F1D3M |
| R900954679 | 4WRZE25W6-220-7X / 6EG24ETK31 / A1D3M |
| R901106936 | 4WRZE25W6-220-7X / 6EG24ETK31 / F1D3M |
| R901266972 | 4WRZE25W6-220-7X / 6EG24K31 / A1D3M |
| R900971496 | 4WRZE25W6-220-7X / 6EG24K31 / A1M |
| R901128915 | 4WRZE25W6-220-7X / 6EG24K31 / F1D3M |
| R900731843 | 4WRZE25W6-220-7X / 6EG24K31 / F1V |
| R900771426 | 4WRZE25W6-220-7X / 6EG24N9EK31 / A1D3M |
| R987036588 | 4WRZE25W6-220-7X / 6EG24N9EK31 / A1D3M |
| R900717757 | 4WRZE25W6-220-7X / 6EG24N9EK31 / A1D3V |
| R901028489 | 4WRZE25W6-220-7X / 6EG24N9EK31 / A1M |
| R900959830 | 4WRZE25W6-220-7X / 6EG24N9EK31 / A1V |
| R901040909 | 4WRZE25W6-220-7X / 6EG24N9EK31 / F1D3M |
| R901144248 | 4WRZE25W6-220-7X / 6EG24N9EK31 / F1D3V |
| R900746205 | 4WRZE25W6-220-7X / 6EG24N9EK31 / F1M |
| R900964933 | 4WRZE25W6-220-7X / 6EG24N9EK31 / F1V |
| R900977488 | 4WRZE25W6-220-7X / 6EG24N9ETK31 / A1D3M |
| R900951208 | 4WRZE25W6-220-7X / 6EG24N9ETK31 / A1D3V |
| R901285342 | 4WRZE25W6-220-7X / 6EG24N9ETK31 / A1M |
| R901012695 | 4WRZE25W6-220-7X / 6EG24N9ETK31 / A1V |
| R978918956 | 4WRZE25W6-220-7X / 6EG24N9ETK31 / A1V |
| R900703118 | 4WRZE25W6-220-7X / 6EG24N9ETK31 / F1D3M |
| R901390487 | 4WRZE25W6-220-7X / 6EG24N9ETK31 / F1D3V |
| R901124430 | 4WRZE25W6-220-7X / 6EG24N9ETK31 / F1M |
| R900962041 | 4WRZE25W6-220-7X / 6EG24N9ETK31 / F1V |
| R900618373 | 4WRZE25W6-220-7X / 6EG24N9K31 / A1D3M |
| R900963714 | 4WRZE25W6-220-7X / 6EG24N9K31 / A1D3V |
| R900707647 | 4WRZE25W6-220-7X / 6EG24N9K31 / A1M |
| R901102316 | 4WRZE25W6-220-7X / 6EG24N9K31 / A1V |
| R900764345 | 4WRZE25W6-220-7X / 6EG24N9K31 / F1D3M |
| R901040919 | 4WRZE25W6-220-7X / 6EG24N9K31 / F1D3V |
| R978917252 | 4WRZE25W6-220-7X / 6EG24N9K31 / F1D3V |
| R900730472 | 4WRZE25W6-220-7X / 6EG24N9K31 / F1M |
| R900947361 | 4WRZE25W6-220-7X / 6EG24N9K31 / F1V |
| R900749456 | 4WRZE25W6-220-7X / 6EG24N9TK31 / A1D3M |
| R901178888 | 4WRZE25W6-220-7X / 6EG24N9TK31 / A1M |
| R900934542 | 4WRZE25W6-220-7X / 6EG24N9TK31 / A1V |
| R901391363 | 4WRZE25W6-220-7X / 6EG24N9TK31 / F1D3M |
| R901027575 | 4WRZE25W6-325-7X / 6EG24EK31 / A1D3M |
| R900728782 | 4WRZE25W6-325-7X / 6EG24EK31 / A1M |
| R901066758 | 4WRZE25W6-325-7X / 6EG24EK31 / A1V |
| R901051670 | 4WRZE25W6-325-7X / 6EG24EK31 / F1D3M |
| R900954681 | 4WRZE25W6-325-7X / 6EG24ETK31 / A1D3M |
| R901074292 | 4WRZE25W6-325-7X / 6EG24ETK31 / A1M |
| R901204401 | 4WRZE25W6-325-7X / 6EG24ETK31 / F1D3V |
| R901047895 | 4WRZE25W6-325-7X / 6EG24ETK31 / F1M |
| R987099281 | 4WRZE25W6-325-7X / 6EG24ETK31 / F1V |
| R900705878 | 4WRZE25W6-325-7X / 6EG24K31 / A1D3M |
| R900954680 | 4WRZE25W6-325-7X / 6EG24K31 / A1M |
| R900952623 | 4WRZE25W6-325-7X / 6EG24K31 / A1V |
| R901075376 | 4WRZE25W6-325-7X / 6EG24K31 / F1D3M |
| R901047428 | 4WRZE25W6-325-7X / 6EG24K31 / F1M |
| R901007462 | 4WRZE25W6-325-7X / 6EG24N9EK31 / A1D3M |
| R900962408 | 4WRZE25W6-325-7X / 6EG24N9EK31 / A1D3V |
| R901033632 | 4WRZE25W6-325-7X / 6EG24N9EK31 / A1M |
| R900971938 | 4WRZE25W6-325-7X / 6EG24N9EK31 / A1V |
| R901040911 | 4WRZE25W6-325-7X / 6EG24N9EK31 / F1D3M |
| R978909693 | 4WRZE25W6-325-7X / 6EG24N9EK31 / F1D3V |
| R900746202 | 4WRZE25W6-325-7X / 6EG24N9EK31 / F1M |
| R901021978 | 4WRZE25W6-325-7X / 6EG24N9EK31 / F1V |
| R900616826 | 4WRZE25W6-325-7X / 6EG24N9ETK31 / A1D3M |
| R900960707 | 4WRZE25W6-325-7X / 6EG24N9ETK31 / A1D3V |
| R900778656 | 4WRZE25W6-325-7X / 6EG24N9ETK31 / A1M |
| R900940842 | 4WRZE25W6-325-7X / 6EG24N9ETK31 / A1V |
| R900728039 | 4WRZE25W6-325-7X / 6EG24N9ETK31 / F1D3M |
| R900948609 | 4WRZE25W6-325-7X / 6EG24N9ETK31 / F1D3V |
| R901035223 | 4WRZE25W6-325-7X / 6EG24N9ETK31 / F1M |
| R901133816 | 4WRZE25W6-325-7X / 6EG24N9ETK31 / F1V |
| R900618605 | 4WRZE25W6-325-7X / 6EG24N9K31 / A1D3M |
| R900964252 | 4WRZE25W6-325-7X / 6EG24N9K31 / A1D3V |
| R900970338 | 4WRZE25W6-325-7X / 6EG24N9K31 / A1M |
| R900731198 | 4WRZE25W6-325-7X / 6EG24N9K31 / A1V |
| R901072891 | 4WRZE25W6-325-7X / 6EG24N9K31 / F1D3M |
| R900705329 | 4WRZE25W6-325-7X / 6EG24N9K31 / F1D3V |
| R901010338 | 4WRZE25W6-325-7X / 6EG24N9K31 / F1M |
| R901122968 | 4WRZE25W6-325-7X / 6EG24N9K31 / F1V |
| R900768664 | 4WRZE25W6-325-7X / 6EG24N9TK31 / A1D3M |
| R901020002 | 4WRZE25W6-325-7X / 6EG24N9TK31 / A1M |
| R901225433 | 4WRZE25W6-325-7X / 6EG24N9TK31 / F1D3M |
| R978933949 | 4WRZE25W6-325-7X / 6EG24N9TK31 / F1D3V |
| R901070153 | 4WRZE25W6-325-7X / 6EG24N9TK31 / F1D3V |
| R901086047 | 4WRZE25W6-325-7X / 6EG24N9TK31 / F1M |
| R901254925 | 4WRZE25W6-325-7X / 6EG24TK31 / A1D3M |
| R901068690 | 4WRZE25W8-220-7X / 6EG24EK31 / A1D3M |
| R900703860 | 4WRZE25W8-220-7X / 6EG24EK31 / A1M |
| R901004132 | 4WRZE25W8-220-7X / 6EG24EK31 / F1D3M |
| R901003252 | 4WRZE25W8-220-7X / 6EG24EK31 / F1M |
| R900954675 | 4WRZE25W8-220-7X / 6EG24ETK31 / A1D3M |
| R901089510 | 4WRZE25W8-220-7X / 6EG24ETK31 / A1M |
| R900973865 | 4WRZE25W8-220-7X / 6EG24ETK31 / F1D3M |
| R901096209 | 4WRZE25W8-220-7X / 6EG24K31 / A1D3M |
| R900747368 | 4WRZE25W8-220-7X / 6EG24K31 / A1M |
| R900758294 | 4WRZE25W8-220-7X / 6EG24K31 / A1V |
| R901003039 | 4WRZE25W8-220-7X / 6EG24K31 / F1D3M |
| R900727881 | 4WRZE25W8-220-7X / 6EG24N9EK31 / A1D3M |
| R900971637 | 4WRZE25W8-220-7X / 6EG24N9EK31 / A1D3V |
| R900770268 | 4WRZE25W8-220-7X / 6EG24N9EK31 / A1M |
| R901054011 | 4WRZE25W8-220-7X / 6EG24N9EK31 / A1V |
| R978916576 | 4WRZE25W8-220-7X / 6EG24N9EK31 / A1V |
| R900757604 | 4WRZE25W8-220-7X / 6EG24N9EK31 / F1D3M |
| R900949748 | 4WRZE25W8-220-7X / 6EG24N9EK31 / F1D3V |
| R901016326 | 4WRZE25W8-220-7X / 6EG24N9EK31 / F1M |
| R900618920 | 4WRZE25W8-220-7X / 6EG24N9ETK31 / A1D3M |
| R900711370 | 4WRZE25W8-220-7X / 6EG24N9ETK31 / A1D3V |
| R901044093 | 4WRZE25W8-220-7X / 6EG24N9ETK31 / A1M |
| R900746375 | 4WRZE25W8-220-7X / 6EG24N9ETK31 / F1D3M |
| R900715044 | 4WRZE25W8-220-7X / 6EG24N9ETK31 / F1D3V |
| R900715042 | 4WRZE25W8-220-7X / 6EG24N9ETK31 / F1V |
| R901070268 | 4WRZE25W8-220-7X / 6EG24N9K31 / A1D3M |
| R900948482 | 4WRZE25W8-220-7X / 6EG24N9K31 / A1D3V |
| R900707648 | 4WRZE25W8-220-7X / 6EG24N9K31 / A1M |
| R978910858 | 4WRZE25W8-220-7X / 6EG24N9K31 / A1V |
| R901004329 | 4WRZE25W8-220-7X / 6EG24N9K31 / F1D3M |
| R900939923 | 4WRZE25W8-220-7X / 6EG24N9K31 / F1D3V |
| R900757651 | 4WRZE25W8-220-7X / 6EG24N9K31 / F1M |
| R900958855 | 4WRZE25W8-220-7X / 6EG24N9K31 / F1V |
| R901141018 | 4WRZE25W8-220-7X / 6EG24N9TK31 / A1D3M |
| R901239776 | 4WRZE25W8-220-7X / 6EG24N9TK31 / A1D3V |
| R901388125 | 4WRZE25W8-220-7X / 6EG24N9TK31 / F1D3M |
| R901145310 | 4WRZE25W8-220-7X / 6EG24N9TK31 / F1D3V |
| R901420177 | 4WRZE25W8-220-7X / 6EG24NJETK31 / F1D3M |
| R901113991 | 4WRZE25W8-220-7X / 6EG24TK31 / F1D3M |
| R900706613 | 4WRZE25W8-325-7X / 6EG24EK31 / A1D3M |
| R900974757 | 4WRZE25W8-325-7X / 6EG24EK31 / A1M |
| R901004115 | 4WRZE25W8-325-7X / 6EG24EK31 / F1D3M |
| R900954678 | 4WRZE25W8-325-7X / 6EG24ETK31 / A1D3M |
| R901295004 | 4WRZE25W8-325-7X / 6EG24ETK31 / A1M |
| R901272413 | 4WRZE25W8-325-7X / 6EG24ETK31 / A1V |
| R900720627 | 4WRZE25W8-325-7X / 6EG24ETK31 / F1D3M |
| R901050471 | 4WRZE25W8-325-7X / 6EG24ETK31 / F1M |
| R901109701 | 4WRZE25W8-325-7X / 6EG24K31 / A1D3M |
| R900247300 | 4WRZE25W8-325-7X / 6EG24K31 / A1M |
| R901019761 | 4WRZE25W8-325-7X / 6EG24K31 / F1D3M |
| R901023998 | 4WRZE25W8-325-7X / 6EG24K31 / F1M |
| R900750126 | 4WRZE25W8-325-7X / 6EG24N9EK31 / A1D3M |
| R900964707 | 4WRZE25W8-325-7X / 6EG24N9EK31 / A1D3V |
| R900770269 | 4WRZE25W8-325-7X / 6EG24N9EK31 / A1M |
| R900966562 | 4WRZE25W8-325-7X / 6EG24N9EK31 / A1V |
| R900753993 | 4WRZE25W8-325-7X / 6EG24N9EK31 / F1D3M |
| R900949756 | 4WRZE25W8-325-7X / 6EG24N9EK31 / F1D3V |
| R900746609 | 4WRZE25W8-325-7X / 6EG24N9EK31 / F1M |
| R900247478 | 4WRZE25W8-325-7X / 6EG24N9EK31 / F1V |
| R900730756 | 4WRZE25W8-325-7X / 6EG24N9ETK31 / A1D3M |
| R900726723 | 4WRZE25W8-325-7X / 6EG24N9ETK31 / A1D3V |
| R901319653 | 4WRZE25W8-325-7X / 6EG24N9ETK31 / A1M |
| R901123603 | 4WRZE25W8-325-7X / 6EG24N9ETK31 / A1M = LB |
| R900950261 | 4WRZE25W8-325-7X / 6EG24N9ETK31 / A1V |
| R901052185 | 4WRZE25W8-325-7X / 6EG24N9ETK31 / F1D3M |
| R900949807 | 4WRZE25W8-325-7X / 6EG24N9ETK31 / F1D3V |
| R901119481 | 4WRZE25W8-325-7X / 6EG24N9ETK31 / F1M |
| R900949808 | 4WRZE25W8-325-7X / 6EG24N9ETK31 / F1V |
| R900767522 | 4WRZE25W8-325-7X / 6EG24N9K31 / A1D3M |
| R900964253 | 4WRZE25W8-325-7X / 6EG24N9K31 / A1D3V |
| R900707649 | 4WRZE25W8-325-7X / 6EG24N9K31 / A1M |
| R900709013 | 4WRZE25W8-325-7X / 6EG24N9K31 / A1V |
| R901014940 | 4WRZE25W8-325-7X / 6EG24N9K31 / F1D3M |
| R900949576 | 4WRZE25W8-325-7X / 6EG24N9K31 / F1D3V |
| R901055706 | 4WRZE25W8-325-7X / 6EG24N9K31 / F1M |
| R901107594 | 4WRZE25W8-325-7X / 6EG24N9K31 / F1V |
| R901032997 | 4WRZE25W8-325-7X / 6EG24N9TK31 / A1D3M |
| R900974150 | 4WRZE25W8-325-7X / 6EG24N9TK31 / A1D3V |
| R901155725 | 4WRZE25W8-325-7X / 6EG24N9TK31 / F1D3M |
| R901117827 | 4WRZE25W8-325-7X / 6EG24N9TK31 / F1D3V |
| R901067674 | 4WRZE25W8-325-7X / 6EG24N9TK31 / F1M |
| R901035805 | 4WRZE25W8-325-7X / 6EG24N9TK31 / F1V |
| R900750197 | 4WRZE25W9-220-7X / 6EG24N9EK31 / A1D3M |
| R900742999 | 4WRZE25W9-220-7X / 6EG24N9EK31 / A1D3V |
| R900750286 | 4WRZE25W9-220-7X / 6EG24N9EK31 / F1D3M |
| R900747301 | 4WRZE25W9-220-7X / 6EG24N9EK31 / F1M |
| R900751428 | 4WRZE25W9-220-7X / 6EG24N9ETK31 / A1D3M |
| R900774064 | 4WRZE25W9-220-7X / 6EG24N9ETK31 / A1D3V |
| R901133735 | 4WRZE25W9-220-7X / 6EG24N9ETK31 / F1D3M |
| R901418233 | 4WRZE25W9-220-7X / 6EG24N9ETK31 / F1M |
| R900769050 | 4WRZE25W9-220-7X / 6EG24N9K31 / A1D3M |
| R900930166 | 4WRZE25W9-220-7X / 6EG24N9K31 / A1D3V |
| R901214474 | 4WRZE25W9-220-7X / 6EG24N9K31 / F1D3M |
| R901313518 | 4WRZE25W9-220-7X / 6EG24N9K31 / F1D3V |
| R901115112 | 4WRZE25W9-220-7X / 6EG24N9K31 / F1M |
| R901033315 | 4WRZE25W9-220-7X / 6EG24N9TK31 / A1D3M |
| R900782796 | 4WRZE25W9-325-7X / 6EG24N9EK31 / A1D3M |
| R900723096 | 4WRZE25W9-325-7X / 6EG24N9EK31 / F1D3M |
| R901013241 | 4WRZE25W9-325-7X / 6EG24N9EK31 / F1D3V |
| R901018075 | 4WRZE25W9-325-7X / 6EG24N9ETK31 / A1D3M |
| R901272918 | 4WRZE25W9-325-7X / 6EG24N9ETK31 / A1D3V |
| R900785482 | 4WRZE25W9-325-7X / 6EG24N9ETK31 / F1D3M |
| R901266631 | 4WRZE25W9-325-7X / 6EG24N9ETK31 / F1D3V |
| R901404500 | 4WRZE25W9-325-7X / 6EG24N9ETK31 / F1M |
| R978909721 | 4WRZE25W9-325-7X / 6EG24N9ETK31 / F1V |
| R901084809 | 4WRZE25W9-325-7X / 6EG24N9K31 / A1D3M |
| R900729096 | 4WRZE25W9-325-7X / 6EG24N9K31 / A1D3V |
| R901116421 | 4WRZE25W9-325-7X / 6EG24N9K31 / F1D3M |
| R900730222 | 4WRZE25W9-325-7X / 6EG24N9K31 / F1D3V |
| R901033132 | 4WRZE25W9-325-7X / 6EG24N9TK31 / A1D3M |
Saar HK Elektronik Limited Şirketi
Ekle: Rm 1506,28 # Moyu Rd, Şangay, Çin, 201805
Tel: + 86-21-5956 1370
Faks: + 86-21-5012 3536
E-posta: jason@hydraulpumpvalve.com
Skype: jason.saar
Mobil / WhatsApp: +8613918187448
İlgili kişi: Mr. Jason
A10VSO18 Serisi Rexroth Hidrolik Pompa, Değişken Eksenel Pistonlu Pompa
Uzun Servis Ömrü ile Değişken Yüksek Basınçlı Hidrolik Pompa A10VSO45 Serisi
Hızlı Hızlı Rexroth Hidrolik Pompa, A10VSO71 Serisi Değişken Pistonlu Hidrolik Pompa
Hydac Basınç Filtresi Elemanının Değiştirilmesi 0240D 0260D 0280D Serisi ISO Onaylandı
Basınç Değiştirme Filtresi Elemanı Hydac 0800D 0900D 1320D 1500D Serisi
Hydac 0240R Serisi Hidrolik Dönüş Hattı Filtresi İçin Dönüş Hattı Elemanları
Parker Denison Hidrolik Pistonlu Değişken Hacimli PVP16 Serisi Pompalar
PVP41 Serisi Parker Denison Hidrolik Pompaları Değişken Hacimli Pistonlu Pompalar
PV140 PV180 Serisi Parker Hidrolik Elde Eksenel Pistonlu Pompa Pompaları
